WELDING CONTROL MODULE Every weld bead, traced to its work order.

When somebody asks about a weld from three months ago, the process has to be pieced back together by hand.

Welding control is the Lynx module for welding process traceability: the intervals of every plant machine, traced to production orders, with the process parameters and weld quality of each order.

Request a demo →

Add to the platform →

lynxplatform.cloud/soldadura/intervalos
Welding control · Intervals

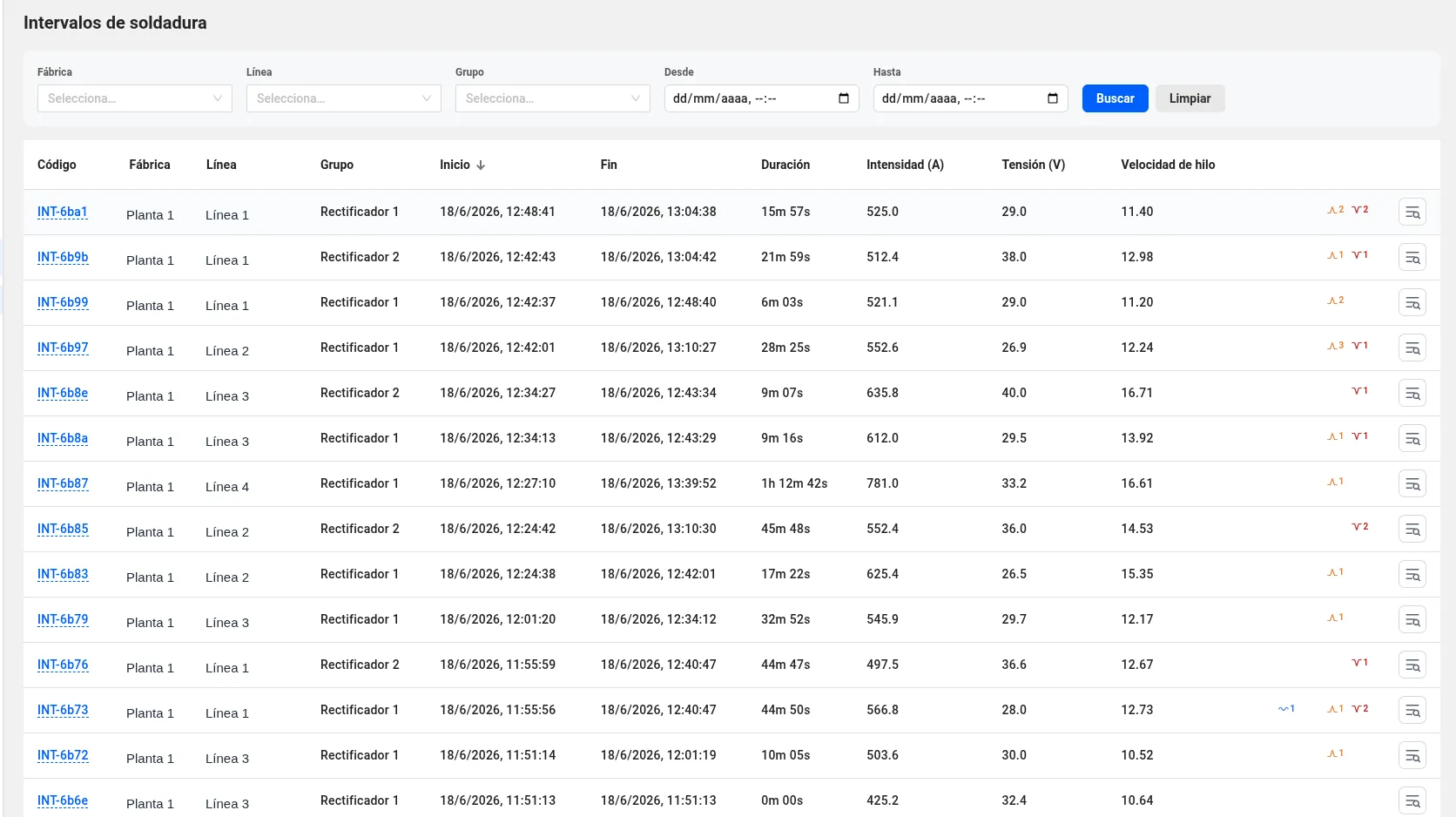

Welding control: table of intervals for one machine, each with its production order and its duration.

How long a defect lasts The spike that ruins a part lasts seconds. The table keeps it.

The main table lists every production order with the median of its welding parameters; the interval detail adds the full statistics.

  • CurrentA · Arc Current

    Median, deviation and coefficient of variation of the arc current.

  • VoltageV · Arc Voltage

    Median and spread of the arc voltage along the bead.

  • Wire speedm/min · WFS

    Median and variation of the wire feed speed.

  • Durationhh·mm·ss

    Interval time, from process start to stop.

  • Wire consumptionkg

    Wire deposited in the bead during the interval.

  • Supplied energykWh

    Total energy and average power supplied to the process.

  • Sample countno.

    Volume of data recorded for each interval signal.

  • Data qualityHz · coverage

    Sampling frequency and coverage of each measured signal.

INTERVAL DETAIL All the bead's statistics, signal by signal

Every interval includes a full detail view: a summary of duration, deposited wire and supplied energy, alongside statistics for current, voltage and wire speed, with out-of-tolerance points and a quality diagnosis.

lynxplatform.cloud/soldadura/intervalo/INT-61dc

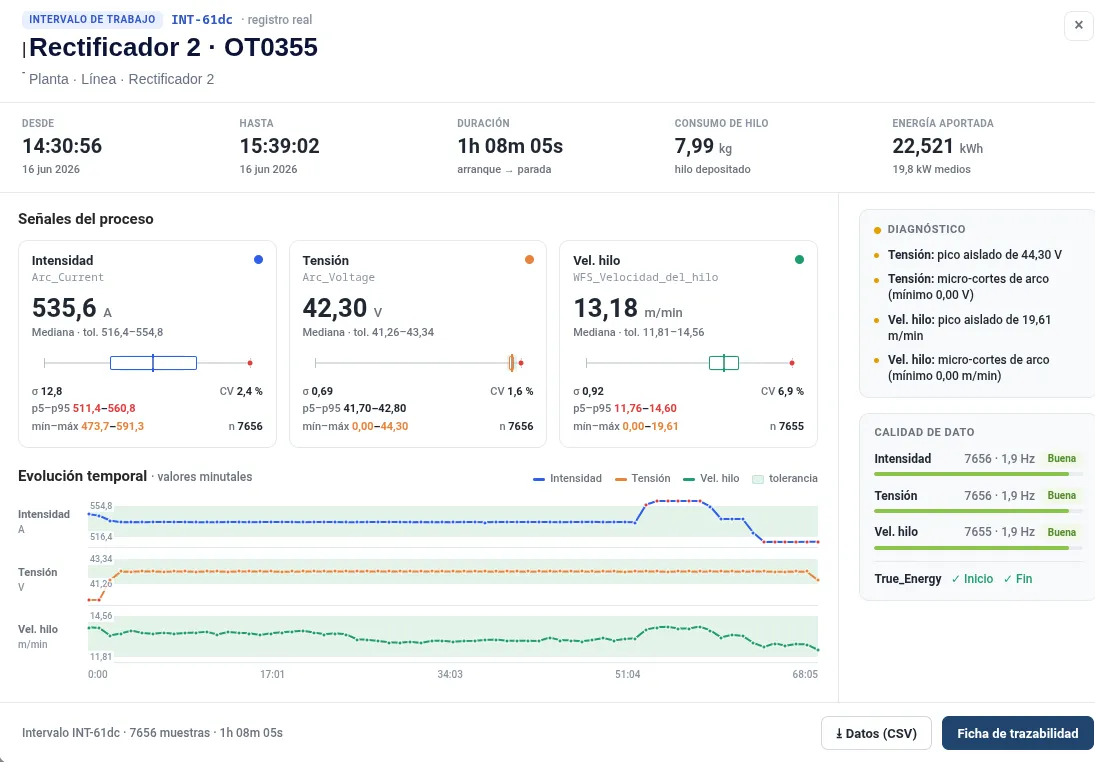

Welding interval detail: statistics for current, voltage and wire speed, with the out-of-tolerance points.
  • Per-signal statistics

    Median, deviation, CV, P5–P95 percentiles, min–max and sample count, with out-of-tolerance points highlighted on the chart.

  • Weld diagnosis

    Automatic summary of bead quality: isolated peaks, arc micro-cuts and detected deviations.

  • Data quality

    Sampling frequency and per-signal coverage as a reliability reference for the analysis.

Lynx by Dominion

Weld traceability end to end

We prepare a demo with real intervals from one of your machines and go through the results of every weld.
